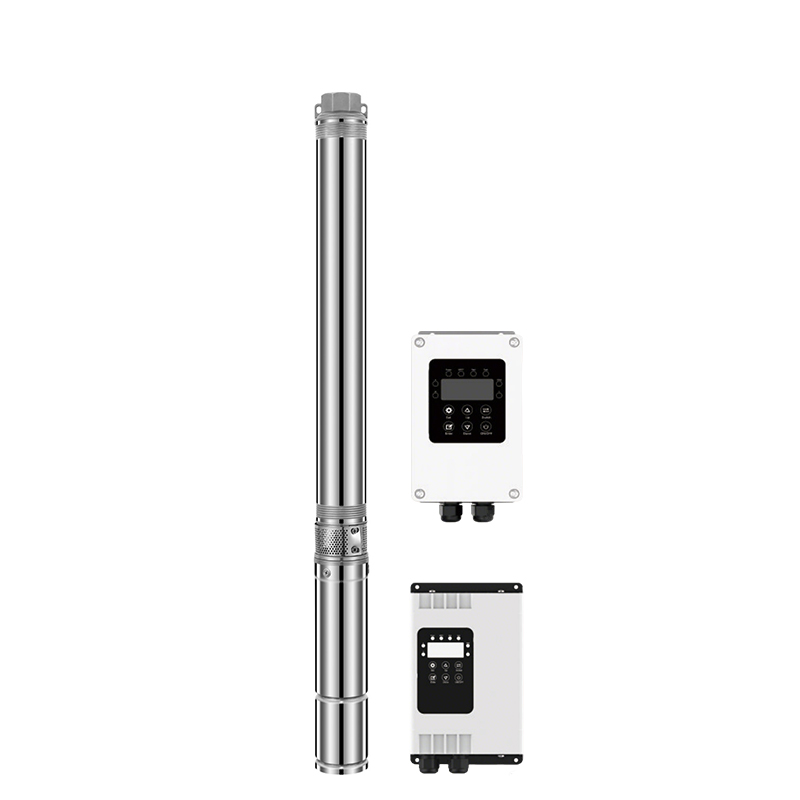

3TYF 1.8/2.5/4
SOLAR DEEP WELL PUMP

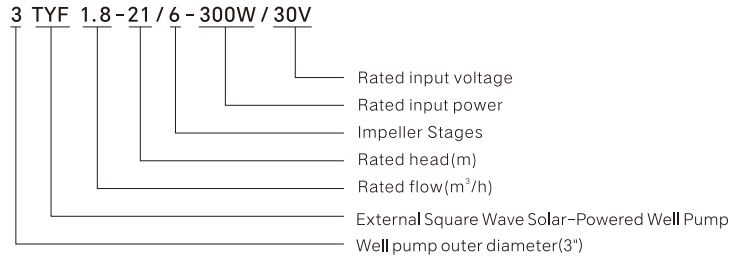

Model Instruction:
Production Application:
Compact structure, high lift, noiseless, pollution-free.
The controller has undervoltage, overvoltage, overcurrent, overload, no water protection and other functions, automatic recovery, control water level requirements.
Easy to install, simple to maintain, safe and reliable;
Green and environmentally energy, solar power supply, single-phase power supply, energy-saving and safe.
Diving depth:1-100m.
Max flow:3.8 m2/h, Max head:128 m.
Product Introduction
Max. outer diameter is 75mm, suitable for 3″ deep wells.
The product uses solar energy as the main power source, and can be optional with a manual AC/DC controller.
The DC brush less motor is used as the driving motor,and the MPPT controller is used for sinusoidal starting and phase change.
The whole machine uses rust-proof and corrosion-resistant materials,stainless steel screws and permanent magnet rotors, with the advantages of small size, high efficiency, good starting performance, pollution-free,and reliable operation.
Product Features
Compact structure, high lift, noiseless, pollution-free.
The controller has undervoltage, overvoltage, overcurrent, overload, no water protection and other functions, automatic recovery, control water level requirements.
Easy to install, simple to maintain, safe and reliable;Green and environmentally energy, solar power supply, single-phase power supply, energy-saving and safe.
Diving depth:1-100m.
Max flow:3.8 m2/h, Max head:128 m.

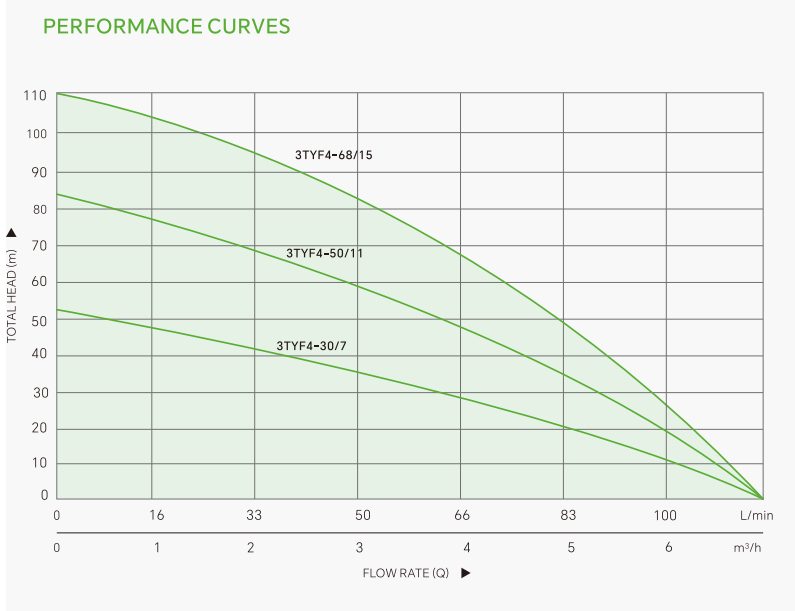

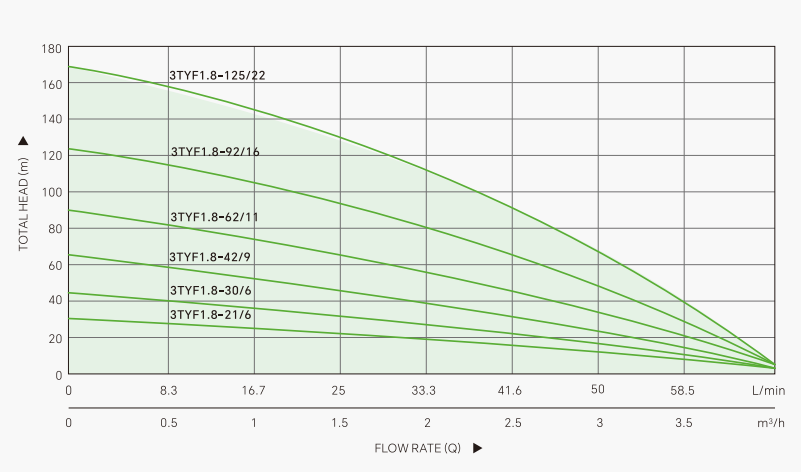

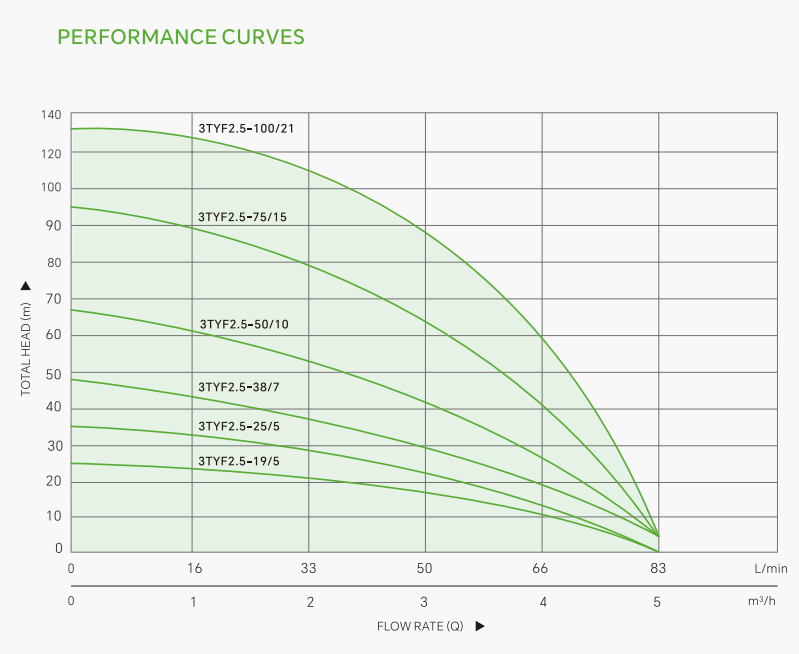

Performance Curves

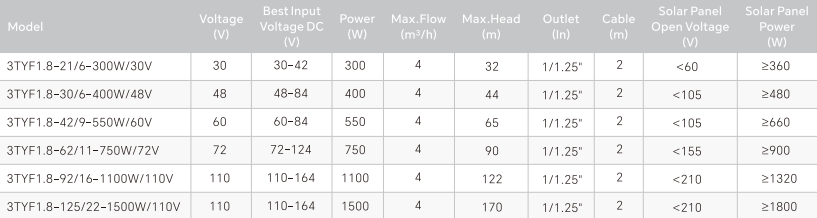

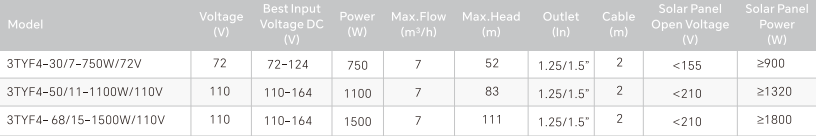

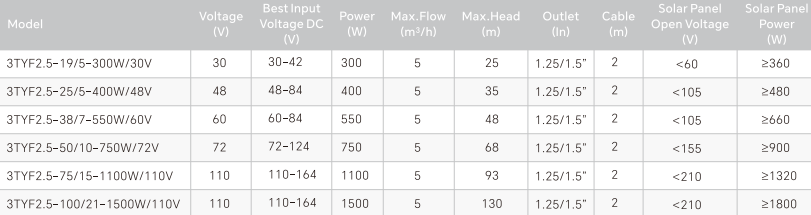

Technical Data
