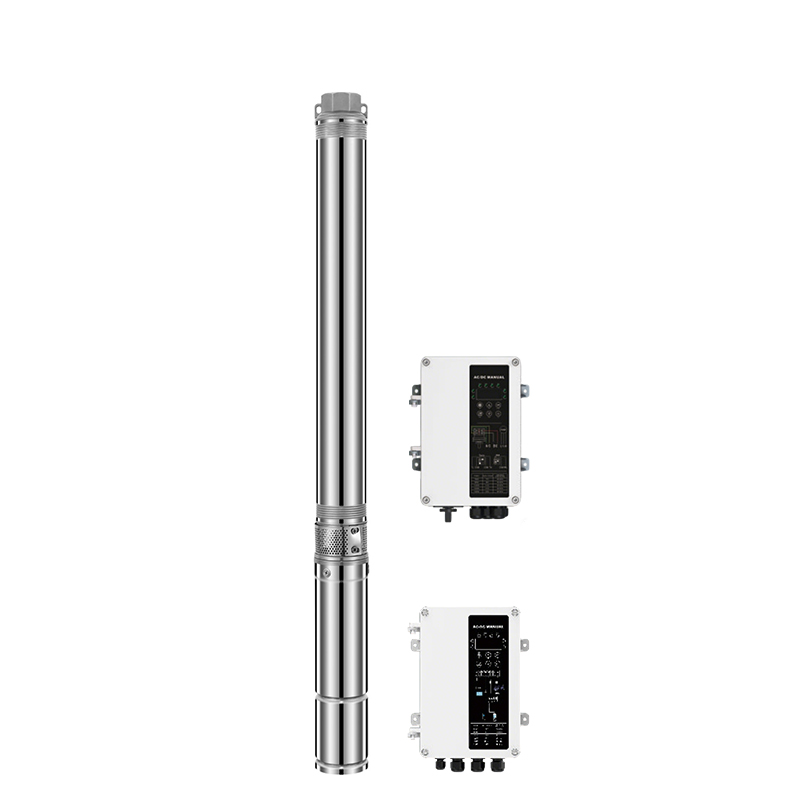

3TY2.5/4-AC/DC
SOLAR DEEP WELL PUMP

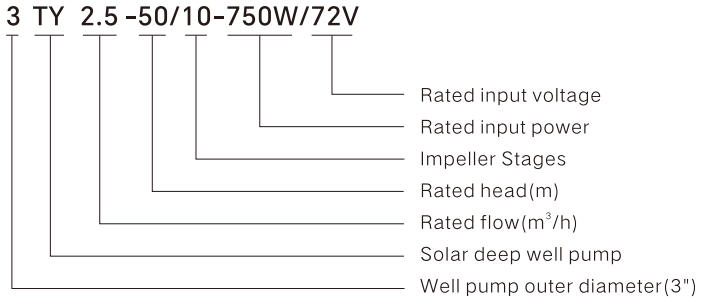

Model Instruction:
Production Application:
Compact structure, high lift, no noise, no pollution.
The controller has undervoltage, over voltage, over current, overload,no water protection and other functions, automatic recovery, control water level requirements.
Easy to install, simple to maintain, safe and reliable.
Green and environmentally energy, solar power supply, single-phase power supply, energy-saving and safe
Diving depth:1-100m.
Max flow: 4.8 m2/h, Max head: 90 m.
Product Introduction
Max. outer diameter is 75mm, suitable for 3″ deep wells.
The product usessolar energy as the main power source, and can be optional with a manual AC/DC controller.
The DC brush less motor is used as the driving motor,and the MPPT controller is used for sinusoidal starting and phase change.
The whole machine uses rust-proof and corrosion-resistant materials,stainless steel screws and permanent magnet rotors, with the advantages of small size, high efficiency, good starting performance, pollution-free,and reliable operation.
Product Features
Compact structure, high lift, no noise, no pollution.
The controller has undervoltage, over voltage, over current, overload,no water protection and other functions, automatic recovery, control water level requirements.
Easy to install, simple to maintain, safe and reliable.
Green and environmentally energy, solar power supply, single-phase power supply, energy-saving and safe
Diving depth:1-100m.
Max flow: 4.8 m2/h, Max head: 90 m.

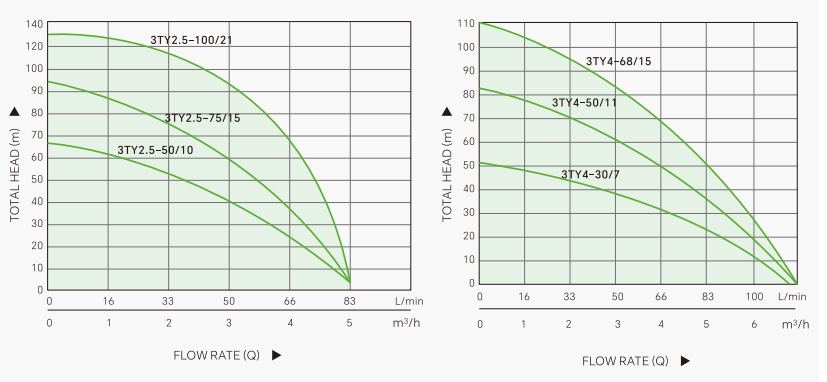

Performance Curves

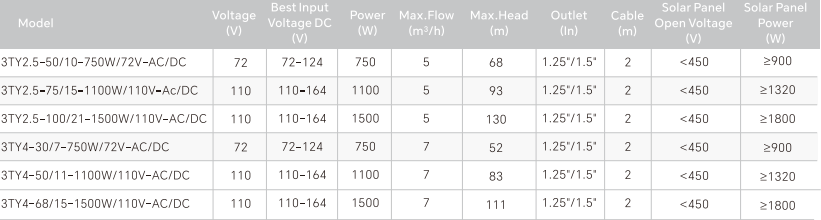

Technical Data
