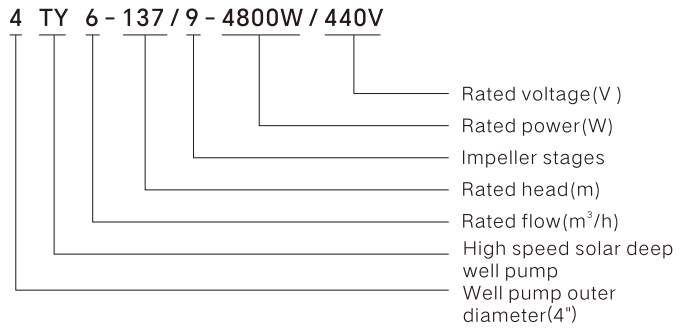

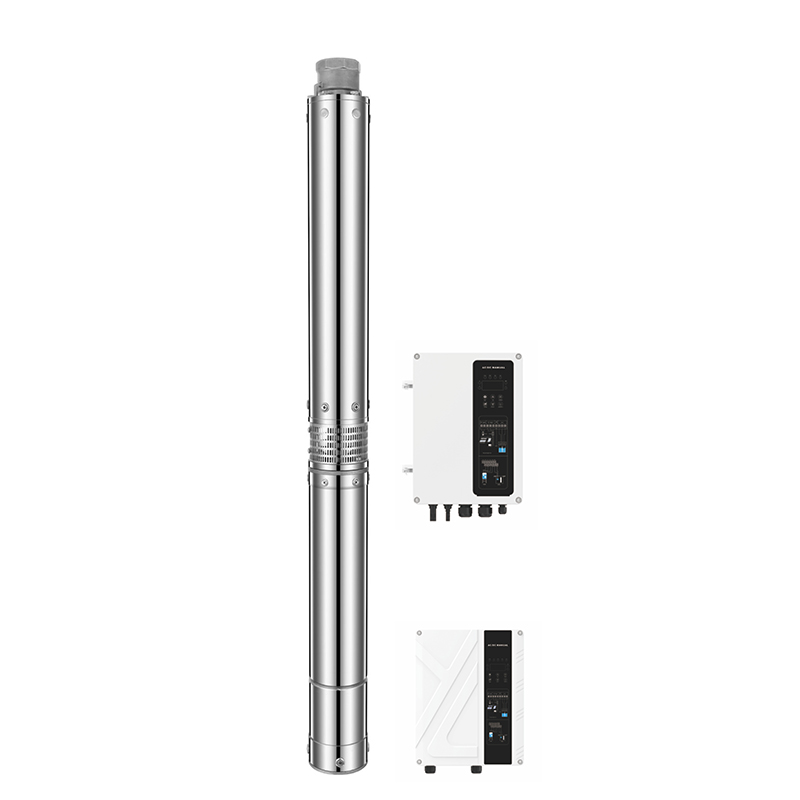

4TY

Max. outer diameter is 99mm, suitable for 4″ deep wells.

The product uses solar energy as the main power source, and can be optional with a manual AC/DC controller.

The DC brush less motor is used as the driving motor, and the MPPT controller is used for sinusoidal starting and phase change.

The whole machine uses rust-proof and corrosion-resistant materials, stainless steel screws and permanent magnet rotors, with the advantages of small size, high efficiency, good starting performance, pollution-free, and reliable operation.

Compact structure, high lift, noiseless, pollution-free;

The controller has undervoltage, over voltage, over current, overload, no water protection and other functions, automatic recovery, control water level requirements;

Easy to install, simple to maintain, safe and reliable;

Green and environmentally energy, solar power supply, Three-phase power supply, energy-saving and safe.

Diving depth:1-100m;

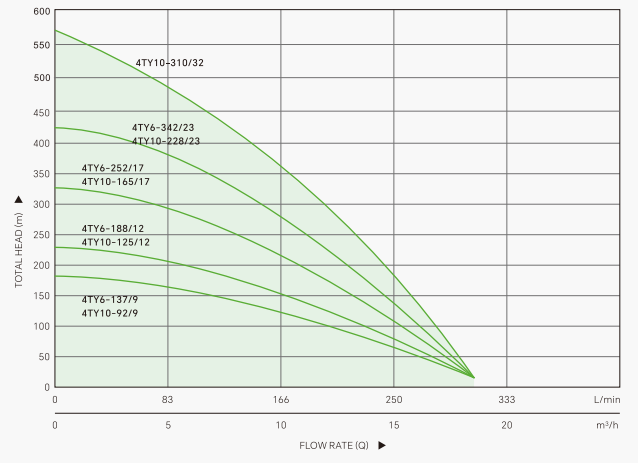

Max flow:17m3/h, Max head:431m;
