TCPM
SURFACE PUMP LONG-DISTANCE TRANSMISSION OF SPRINKLER IRRIGATION

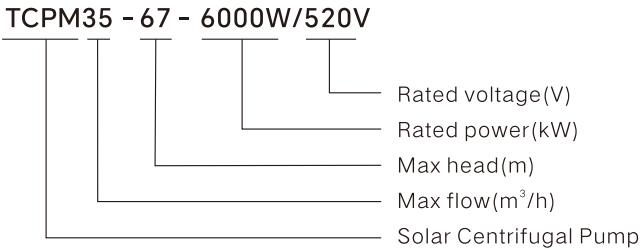

Model Instruction:
Production Application:
When the photovoltaic power is insufficient (less than 90% of the ratedpower), the AC power supplements the insufficient power to achieve full power operation
14 or 15 photovoltaic panels in series
Product Introduction
High lift, large flow, used in mountain water delivery and drip irrigation.
Cast iron impeller, cast iron pump head, motor is MPPT permanent magnet motor.
Permanent magnet motor and MPPT maximum photovoltaic power point tracking design, using 8-pole motor design, large torque, and control the speed, thus ensuring the product light and efficient.
The driver uses the self-developed sine wave vector to drive the FOC.
Drive accurate and efficient, reduce harmonic current.
The product’s outlet is DN40/DN50(nominal diameter), and the impeller is made of cast iron.
Product Features
When the photovoltaic power is insufficient (less than 90% of the ratedpower), the AC power supplements the insufficient power to achieve fullpower operation
14 or 15 photovoltaic panels in series

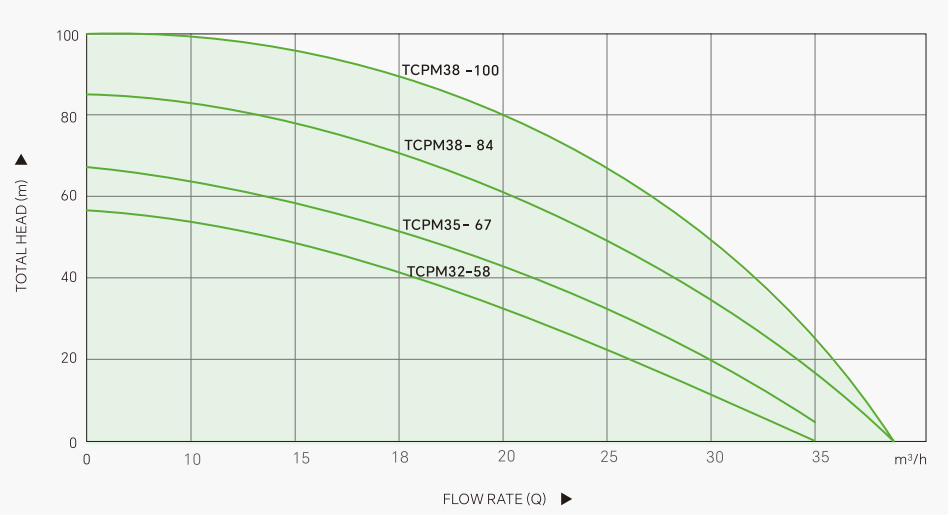

Performance Curves

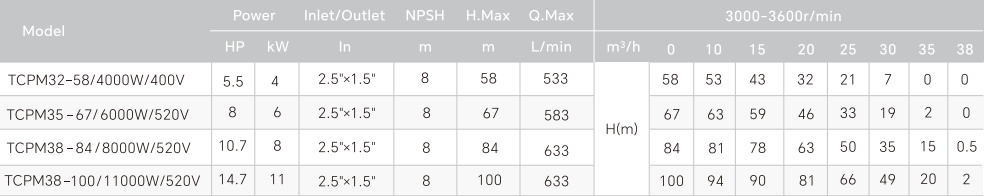

Technical Data
