TCPM
SURFACE PUMP FAMILYUSE SERIES

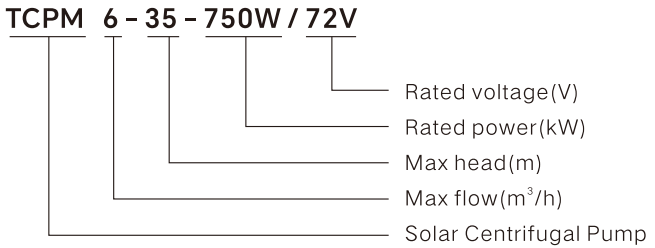

Model Instruction:
Production Application:
Waterproof grade: IP65
Ambient temperature: -15°C~60°C.
LCD displays the power,voltage,current,speed,and other working conditions.
Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand
Automatically start and stop working, no need for personnel to operate
Soft start: no impulse current, protect the pump motor
Protection functions such as over voltage/under voltage/over current/phase loss/short circuit/water shortage/high temperature protection.
Permanent magnet DC brushless motor: the efficiency is increased by 25%
Product Introduction

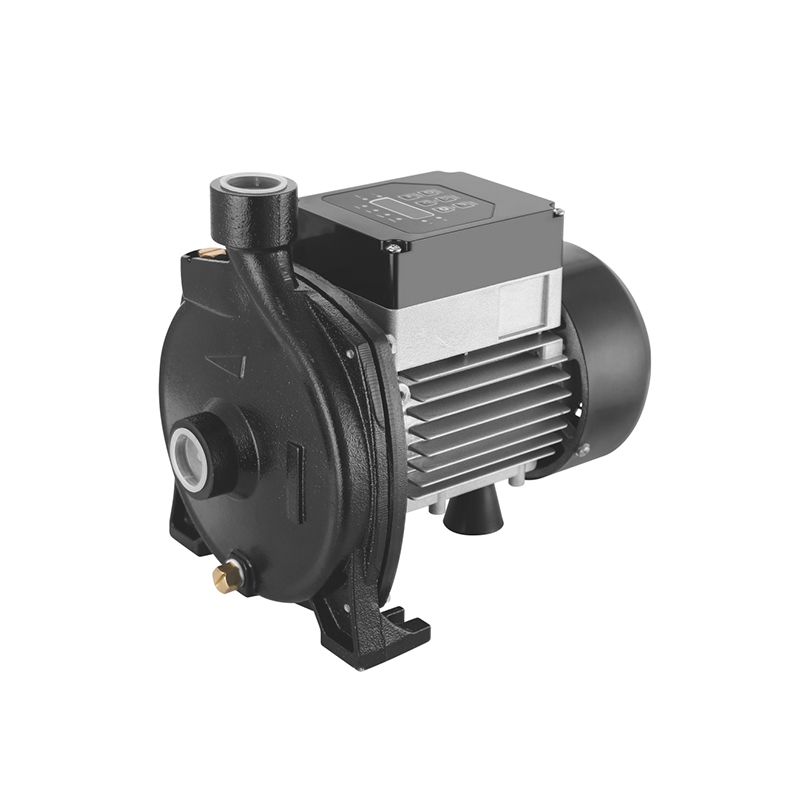

This is CPM series solar centrifugal pumps.
It is made up of Permanent magnet DC brush less motor, pump body, controller and mechanical seal and others.
Pump speed is 3000-3600rpm.
the mechanical seal is installed between the pump body and motor.
The shaft is equipped with a water retaining ring to prevent water from flowing into the motor.
Product Features
Waterproof grade: IP65
Ambient temperature: -15°C~60°C.
LCD displays the power,voltage,current,speed,and other working conditions.
Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand
Automatically start and stop working, no need for personnel to operate
Soft start: no impulse current, protect the pump motor
Protection functions such as over voltage/under voltage/over current/phase loss/short circuit/water shortage/high temperature protection.
Permanent magnet DC brushless motor: the efficiency is increased by 25%

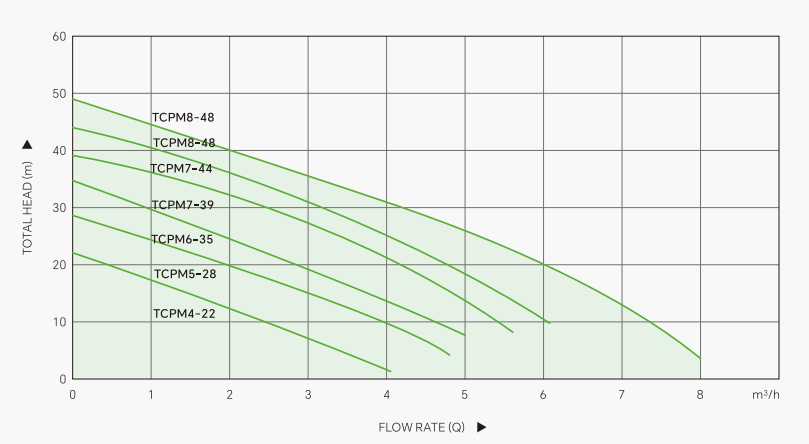

Performance Curves

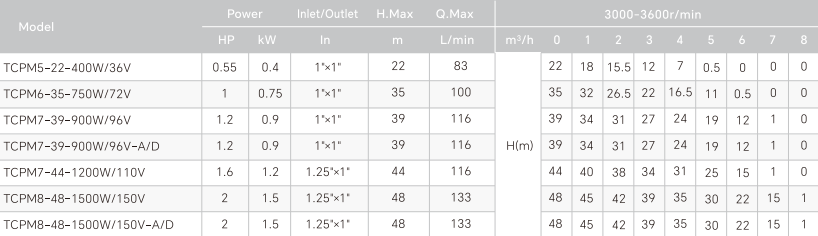

Technical Data
