TISW
SURFACE PUMP LONG-DISTANCE TRANSMISSION OF SPRINKLER IRRIGATION
Model Instruction:
Production Application:
The protection level: IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brushless motors is 25% higher than that of brushed motors.
When the photovoltaic power is insufficient (less than 90% of the rated power), the AC power supplements the insufficient power to achieve full power operation
14 or 15 photovoltaic panels in series
Product Introduction
TISW series solar water pump are mainly composed of permanent magnet brushless motors, pump body and mechanical seal.
The drive power of the pump can be solar panel or 380V electricity.
The solar panel range is 2800- 8000w.
The 2inch water pump can meet big farmland irrigation with the max flow range 10- 50m3/h and max head of 32- 50m.
The pump can choose App remote control, which is convenient for monitor the performance, including power, current, voltage, ect.
Product Features
The protection level: IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brushless motors is 25% higher than that of brushed motors.
When the photovoltaic power is insufficient (less than 90% of the rated power), the AC power supplements the insufficient power to achieve full power operation
14 or 15 photovoltaic panels in series

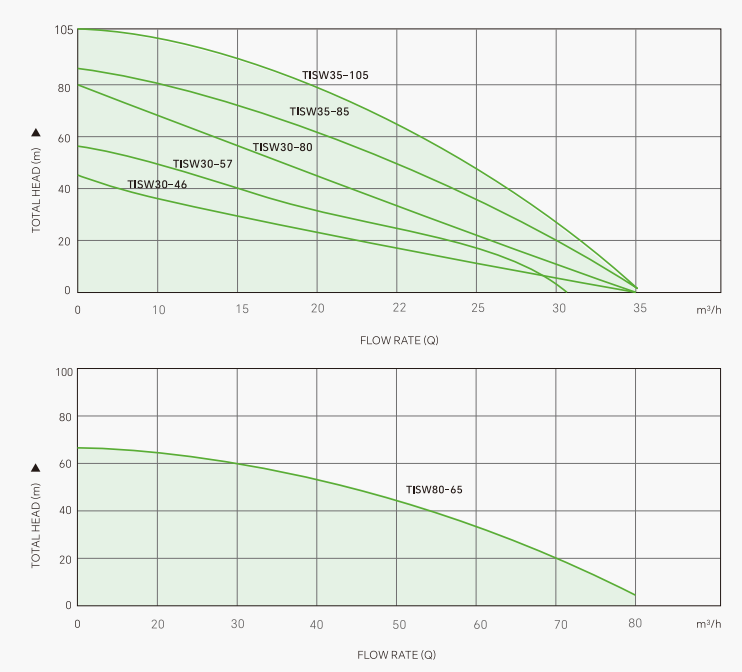

Performance Curves

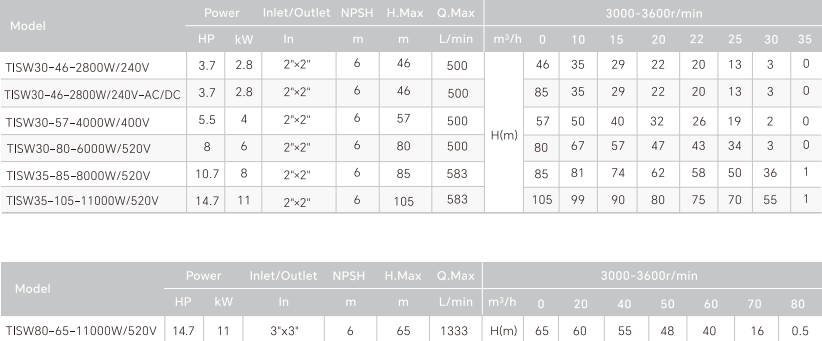

Technical Data
