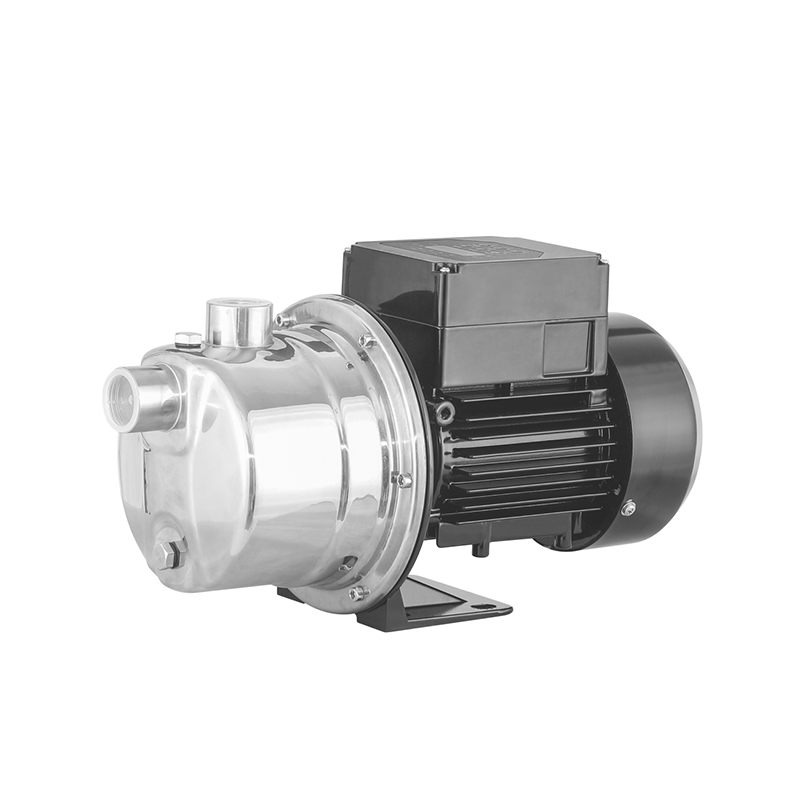

TJET
SURFACE PUMP FAMILYUSE SERIES

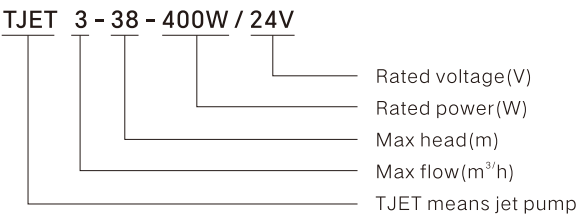

Model Instruction:
Production Application:
The protection level: IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brushless motors is 25% higher than that of brushed motors.
Product Introduction
TJET series solar self-priming jet pump are mainly composed of permanent magnet brushless motors, pump body and mechanical seal.
It adopts a unique structure of centrifugal impeller, radial guide vane, and jet pipe.
The working principle is pumping water from inlet, then pass through the nozzle to form a vacuum, and then the water transferred to the discharge.
The pump has the function of self-priming,with the motor speed of 3000-3600rpm to achieve high head.
Pump part is equipped with a single end mechanical seal, and the motor part with a drive plate, besides the shaft with a water stop ring, even the fixed stop of the water pump with an “O” ring.
The above steps reach a good function to prevent water throwing.
Product Features
The protection level: IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brushless motors is 25% higher than that of brushed motors.

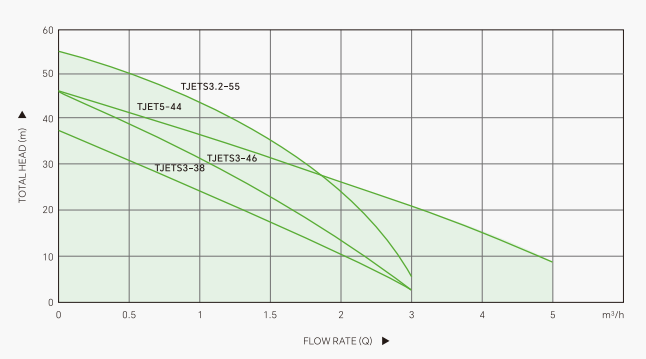

Performance Curves

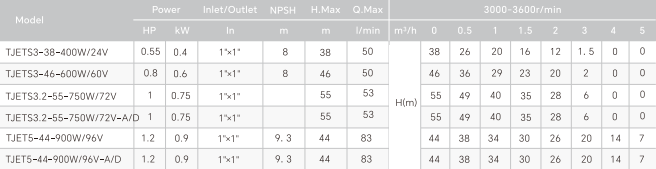

Technical Data
