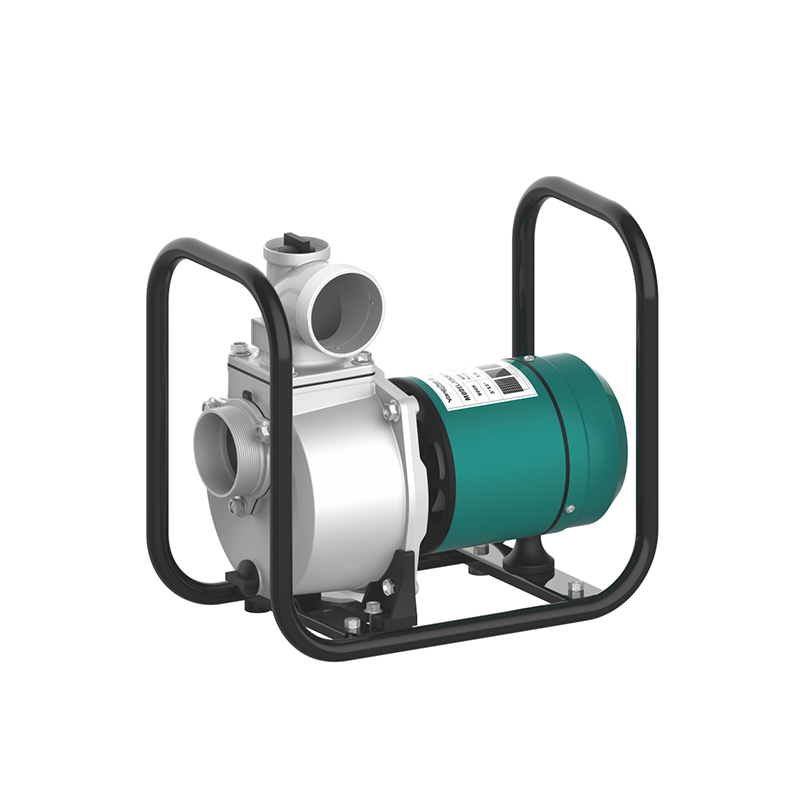

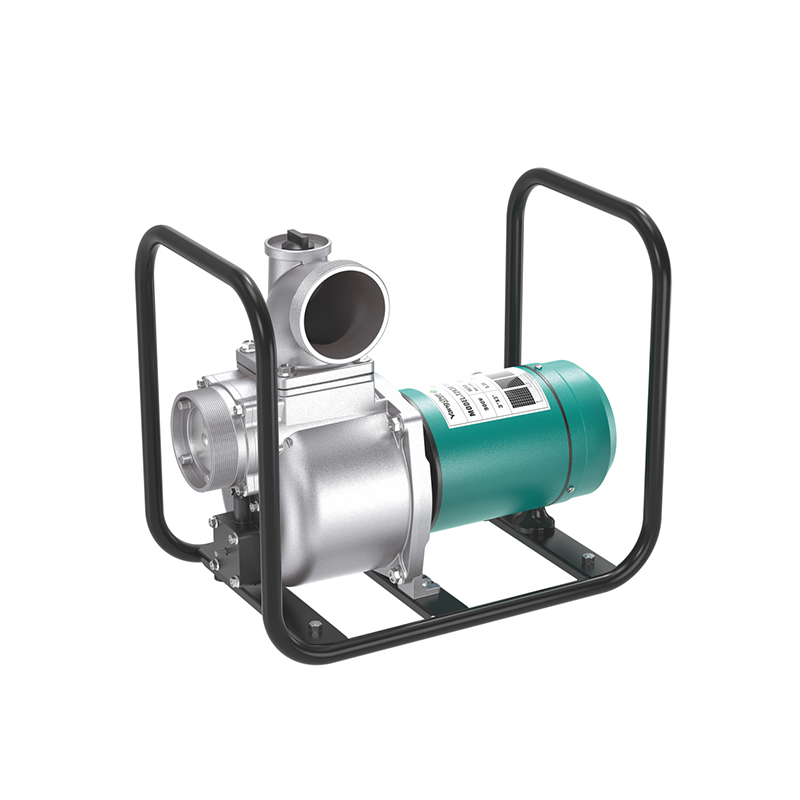

TPF/TP-S
SURFACE PUMP AGRICULTURAL USE SERIES
Model Instruction:
Production Application:
The protection level: IP65.
Operating temperature:-15°C to+60.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brushless motors is 25% higher than that of brushed motors.
Product Introduction
TP-S series solar water pump are mainly composed of permanent magnet brushless motors, pump body and mechanical seal.
The pumpadopts Semi- open impeller with a speed of 3000-3600 rpm.
The pump has the function of self-priming.
Pump part is equipped with a single end mechanical seal,and the motor part with a drive plate,besides the shaft with a water stop ring, even the fixed stop of the water pump with an “O”ring.
The above steps reach a good function to prevent water throwing.
Product Features
The protection level: IP65.
Operating temperature:-15°C to+60.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brushless motors is 25% higher than that of brushed motors.

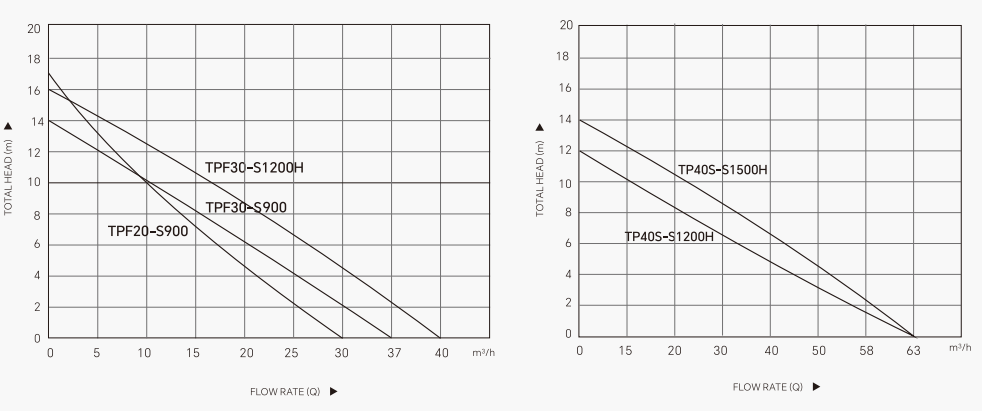

Performance Curves

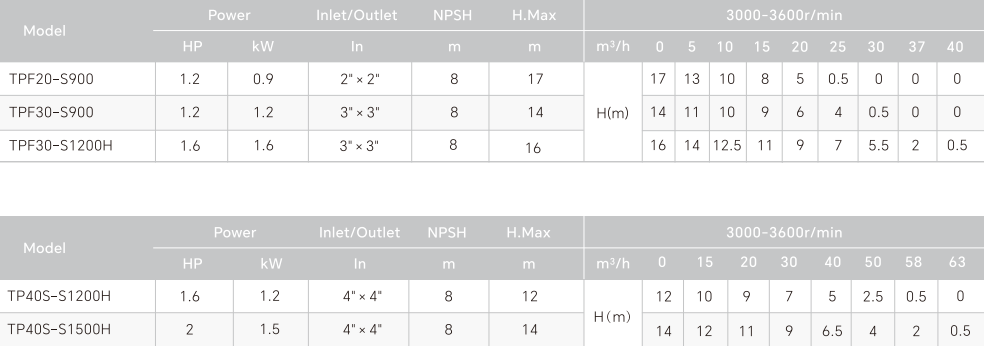

Technical Data
