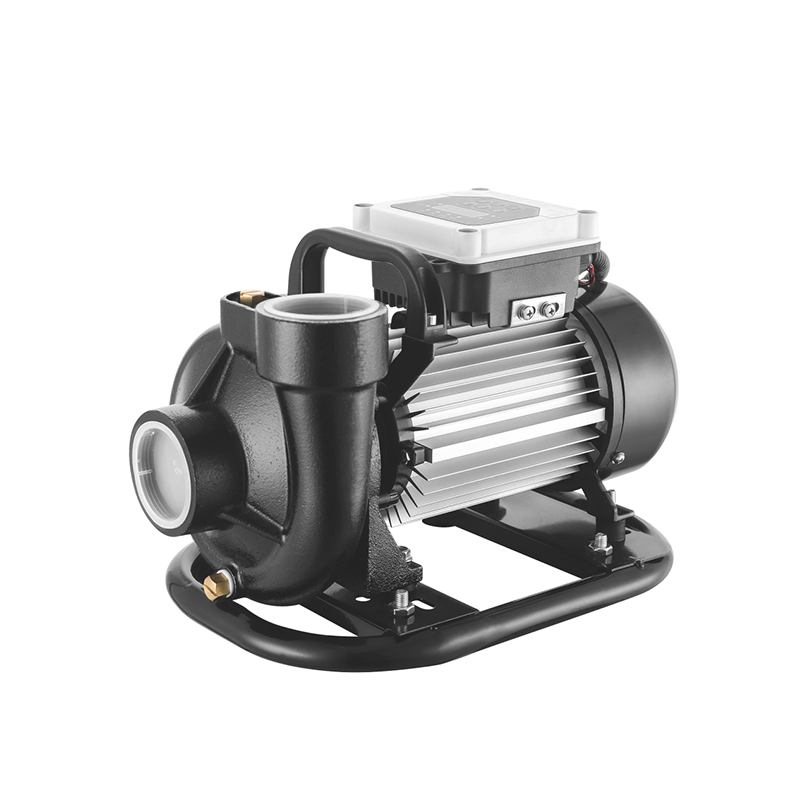

TPN
SURFACE PUMP AGRICULTURAL USE SERIES

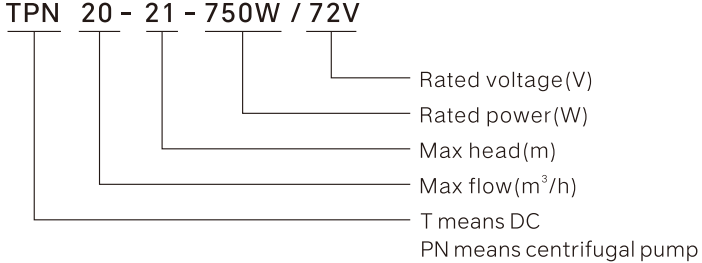

Model Instruction:
Production Application:
The protection level: IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brush less motors is 25% higher than that of brushed motors.
Product Introduction

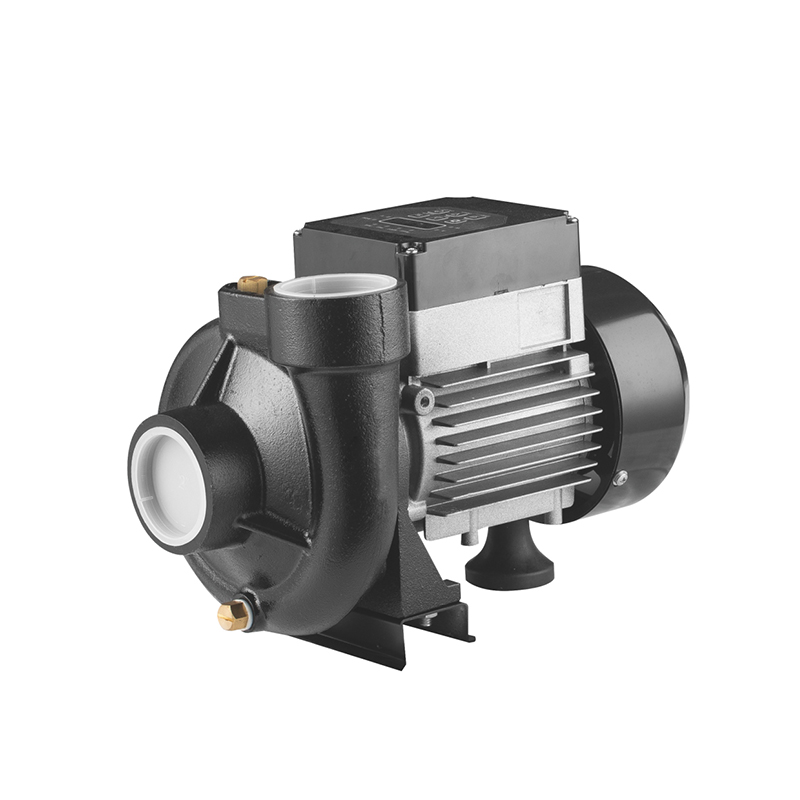

TPN series solar water pump are mainly composed of permanent magnet brush less motors, pump body and mechanical seal.
The speed is 3000-3600 rpm.
The pump has the function of self-priming.Pump part is equipped with a single end mechanical seal, and the motor part with a drive plate, besides the shaft with a water stop ring, even the fixed stop of the water pump with an “O” ring.
The above steps reach a good function to prevent water throwing.
Product Features
The protection level: IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brush less motors is 25% higher than that of brushed motors.
Performance Curves
Technical Data
