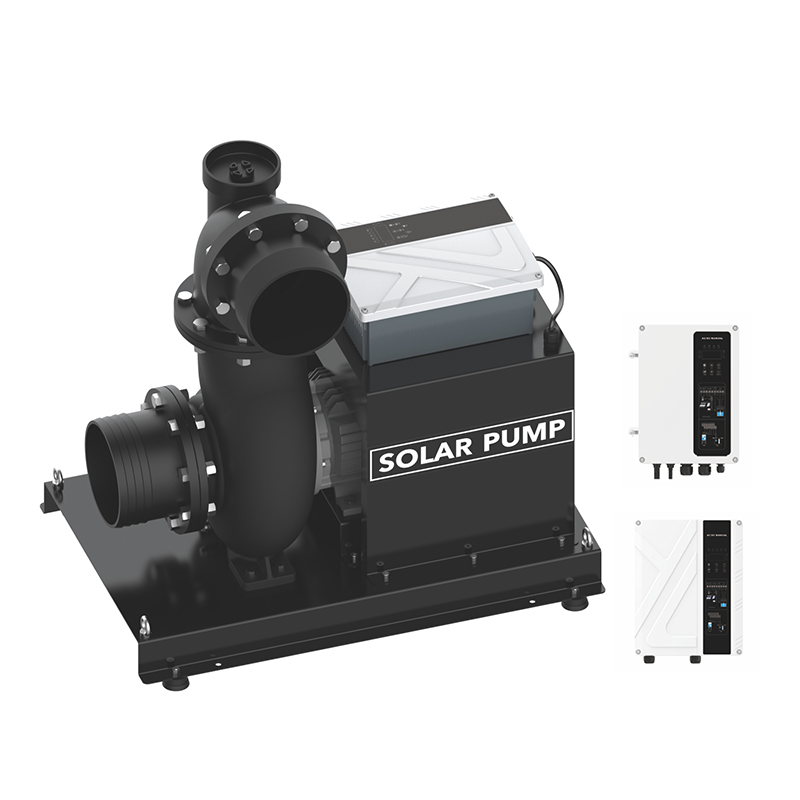

TPN
SURFACE PUMP AGRICULTURAL USE SERIES

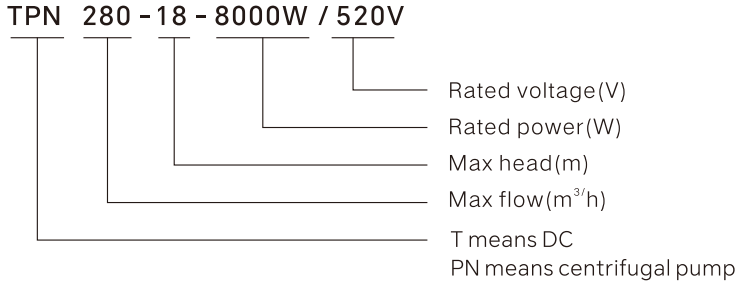

Model Instruction:
Production Application:
The protection level:IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brush less motors is 25% higher than that of brushed motors.
When the photovoltaic power is insufficient (less than 90% of the rated power), the AC power supplements the insufficient power to achieve full power operation
14 or 15 photovoltaic panels in series
Product Introduction
TPN series solar water pump are mainly composed of permanent magnet brushless motors, pump body and mechanical seal.
The drive power of the pump can be solar panel or 380V electricity.
The solar panel should reach 4800w and 8000w.
The 8inch water pump can meet big farmland irrigation with the max flow 320m3/h and max head of 15m.
The pump can choose App remote control,which is convenient for monitor the performance,including power,current,voltage,ect.
Product Features
The protection level:IP65.
Operating temperature: -15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brush less motors is 25% higher than that of brushed motors.
When the photovoltaic power is insufficient (less than 90% of the rated power), the AC power supplements the insufficient power to achieve full power operation
14 or 15 photovoltaic panels in series

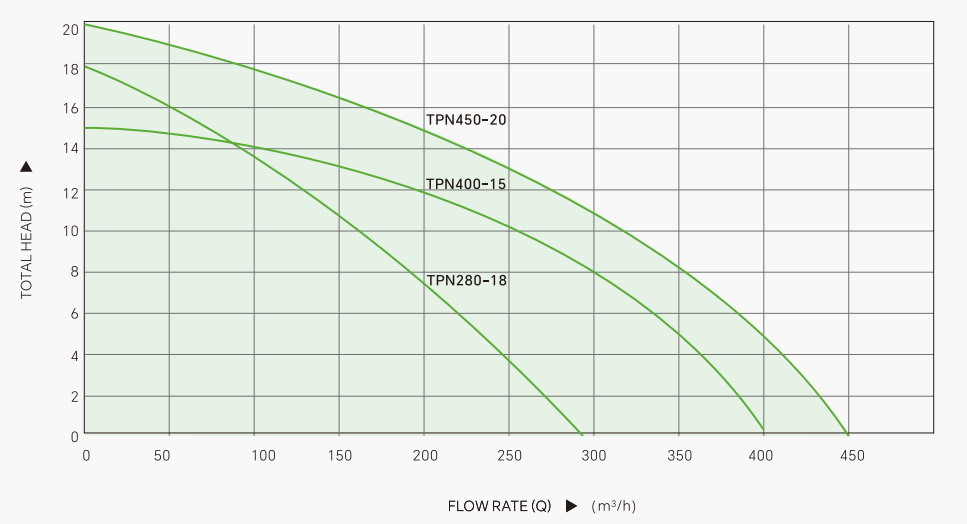

Performance Curves

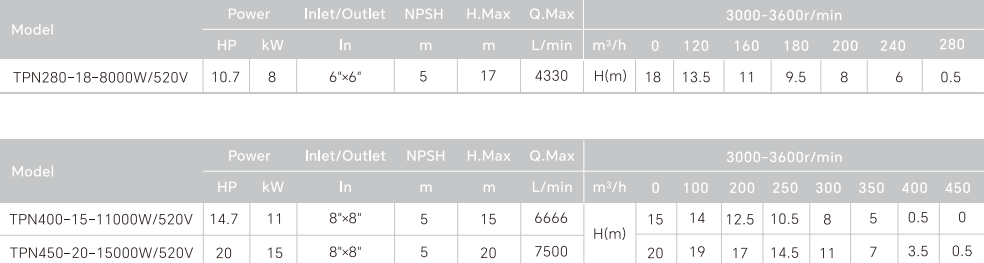

Technical Data
