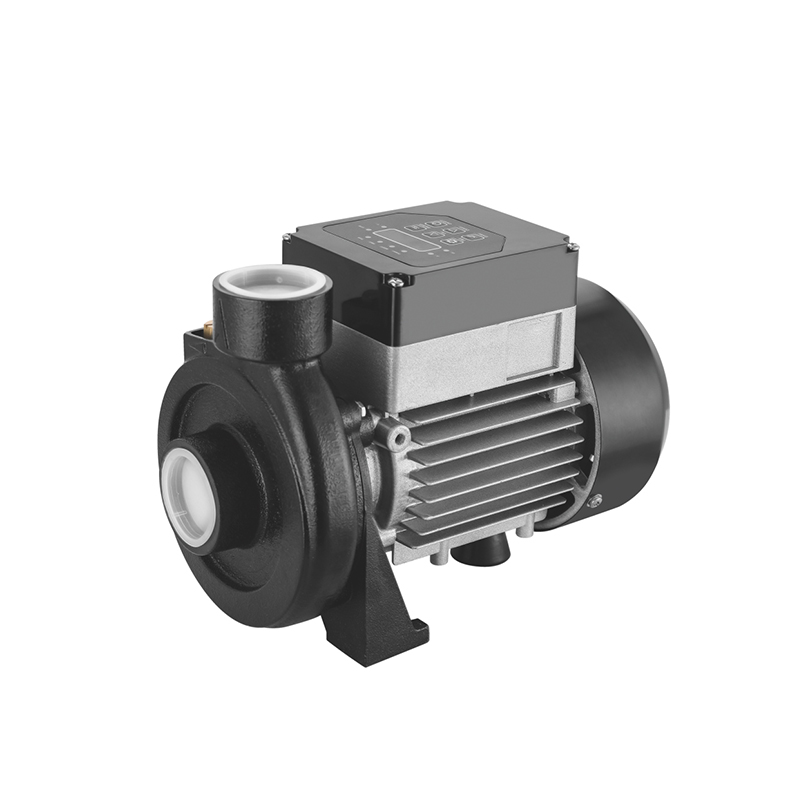

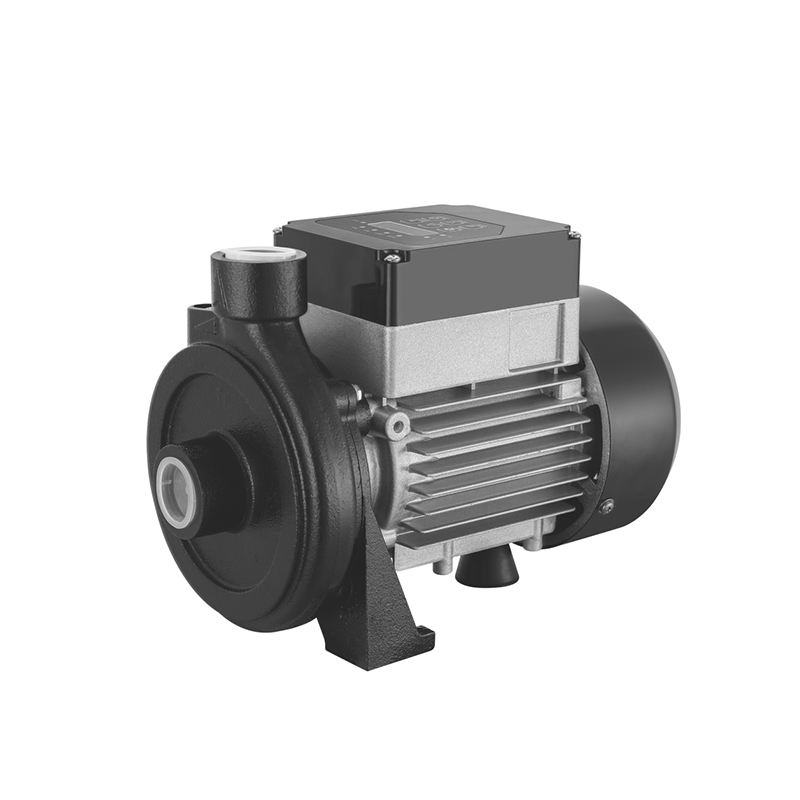

TPN
SURFACE PUMP FAMILYUSE SERIES

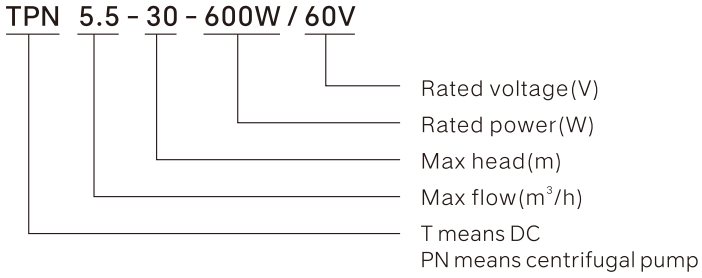

Model Instruction:
Production Application:
The protection level: IP65.
Operating temperature: 15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brush less motors is 25% higher than that of brushed motors
Product Introduction
TPN series solar water pump are mainly composed of permanent magnet brushless motors, pump body and mechanical seal.
The pump adopts Semi- open impeller with a speed of 3000-3600rpm.
The pump has the function of self-priming.
Pump part is equipped with a single end mechanical seal, and the motor part with a drive plate, besides the shaft with a water stop ring,even the fixed stop of the water pump with an “O”ring.
The above steps reach a good function to prevent water throwing.
Product Features
The protection level: IP65.
Operating temperature: 15°C to+60°C.
LCD displays working status and fault codes.
Automatic start stop (with float installed).
Soft start and automatic frequency conversion function.
The efficiency of permanent magnet brush less motors is 25% higher than that of brushed motors

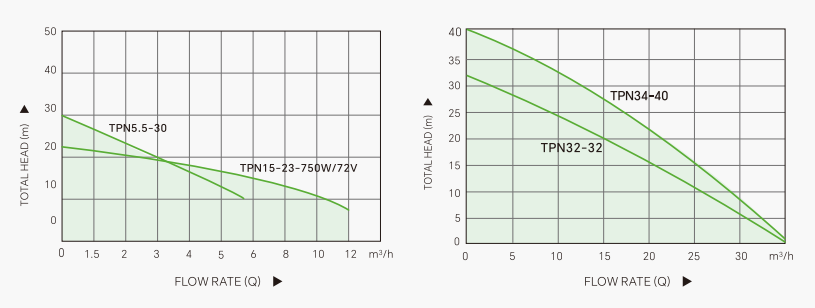

Performance Curves

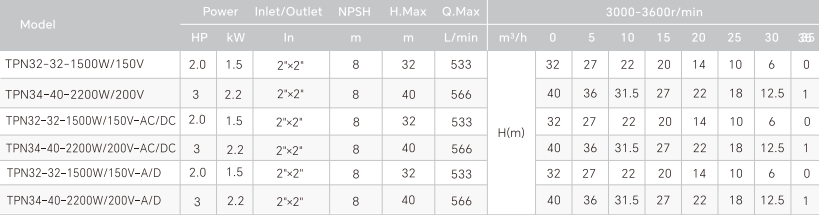

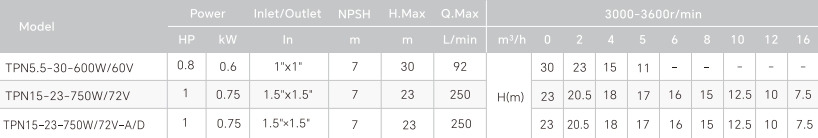

Technical Data
