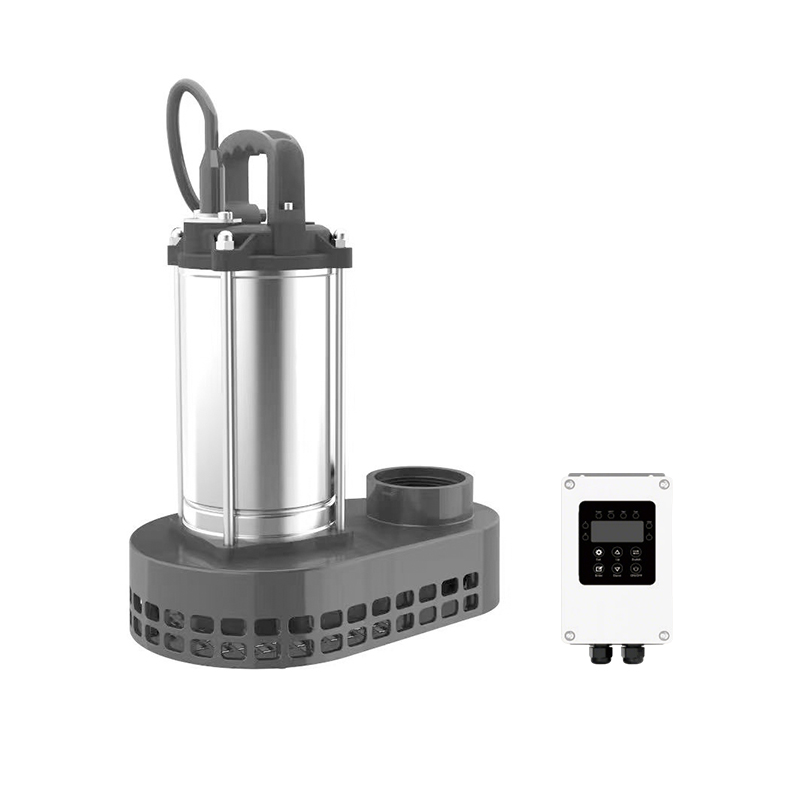

TQ
SUBMERSIBLE PUMP

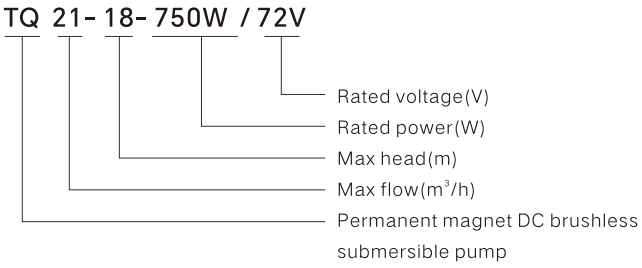

Model Instruction:
Production Application:
Waterproof grade: IPX8
Ambient temperature: -15°C-60°C.
Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand.
Automatically start and stop working, no need for personnel to operate.
Soft start: no impulse current, protect the pump motor.
Protection functions such as over voltage/under voltage/over current/phase loss/short circuit/water shortage/high temperature protection.
Permanent magnet DC brushless motor: the efficiency is increased by 25%
Product Introduction
This TQ series Permanent magnet DC brush less submersible pump.
Itis make up of pump body, mechanical seal, motor and others.
The upper part of the pump is the Permanent magnet DC brush less motor and built-in controller.
The lower part of the pump is the pump body, with a built-in centrifugal impeller and volute structure.
Product Features
Waterproof grade: IPX8
Ambient temperature: -15°C-60°C.
Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand.
Automatically start and stop working, no need for personnel to operate.
Soft start: no impulse current, protect the pump motor.
Protection functions such as over voltage/under voltage/over current/phase loss/short circuit/water shortage/high temperature protection.
Permanent magnet DC brushless motor: the efficiency is increased by 25%

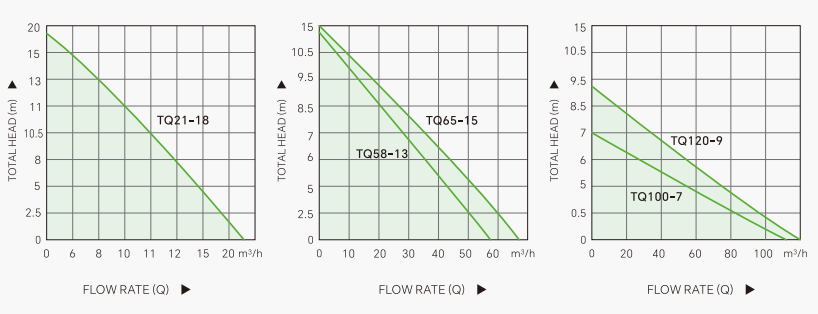

Performance Curves

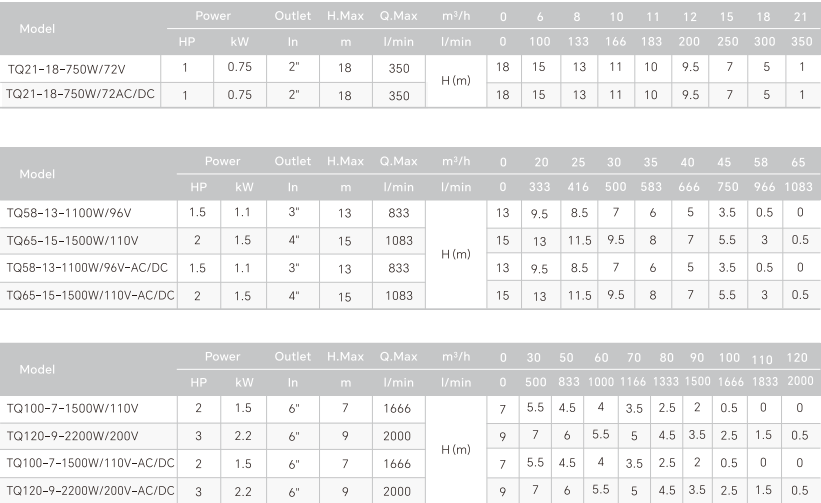

Technical Data
