TZ
SURFACE PUMP AGRICULTURAL USE SERIES

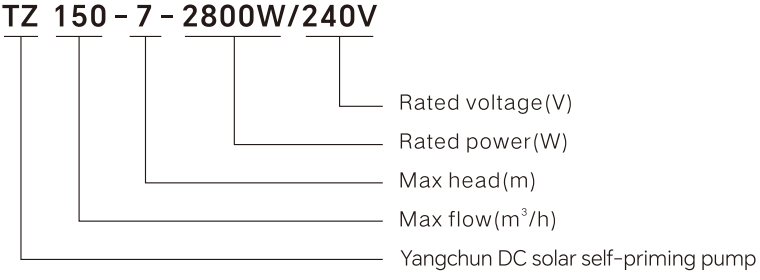

Model Instruction:
Production Application:
Pump body is made of plastic steel and stainless steel, Corrosion resistance, acid and alkali resistance, seawater resistance.
Efficient centrifugal impeller improves the pumping performance by 30%.
6 meters of suction in 150 seconds, max suction is 8 meters.
Waterproof grade: IP65.
Ambient temperature: -15°C~60°C.LCD displays the power, voltage, current, speed, and other working conditions.
Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand
Automatically start and stop working, no need for personnel to operate
Soft start: no impulse current, protect the pump motor.
Protection functions such as over voltage/under voltage/over current/phase loss/short circuit/water shortage/high temperature protection.
Permanent magnet DC brushless motor:the efficiency is increased by 25%.
When the photovoltaic power is insufficient (less than 90% of the rated power), the AC power supplements the insufficient power to achieve full power operation
14 or 15 photovoltaic panels in series
Product Introduction
This is TZ series solar large flow self-priming water pump.
The advantage of the pump is Permanent magnet DC brush less synchronous motor and efficient pump body.
Pump Primary energy efficiency is IE5.
Save energy.
Reduce the consumption of solar panels.
Product Features
Pump body is made of plastic steel and stainless steel, Corrosion resistance, acid and alkali resistance, seawater resistance.
Efficient centrifugal impeller improves the pumping performance by 30%.
6 meters of suction in 150 seconds, max suction is 8 meters.
Waterproof grade: IP65.
Ambient temperature: -15°C~60°C.LCD displays the power, voltage, current, speed, and other working conditions.
Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand
Automatically start and stop working, no need for personnel to operate
Soft start: no impulse current, protect the pump motor.
Protection functions such as over voltage/under voltage/over current/phase loss/short circuit/water shortage/high temperature protection.
Permanent magnet DC brushless motor:the efficiency is increased by 25%.
When the photovoltaic power is insufficient (less than 90% of the rated power), the AC power supplements the insufficient power to achieve full power operation
14 or 15 photovoltaic panels in series

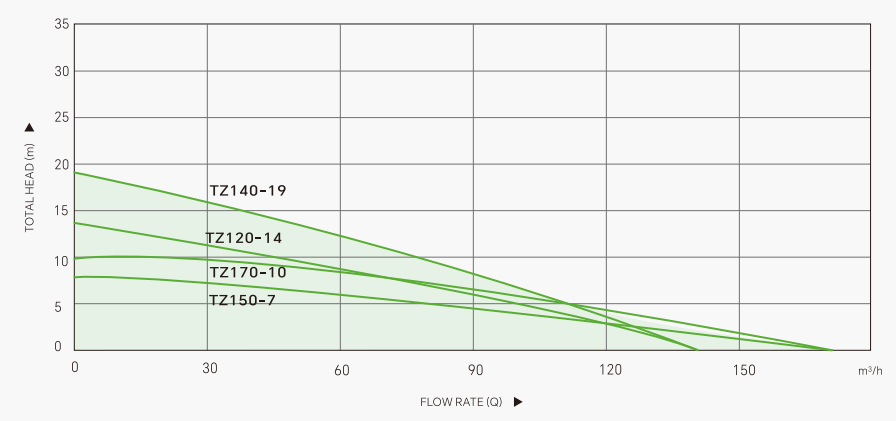

Performance Curves

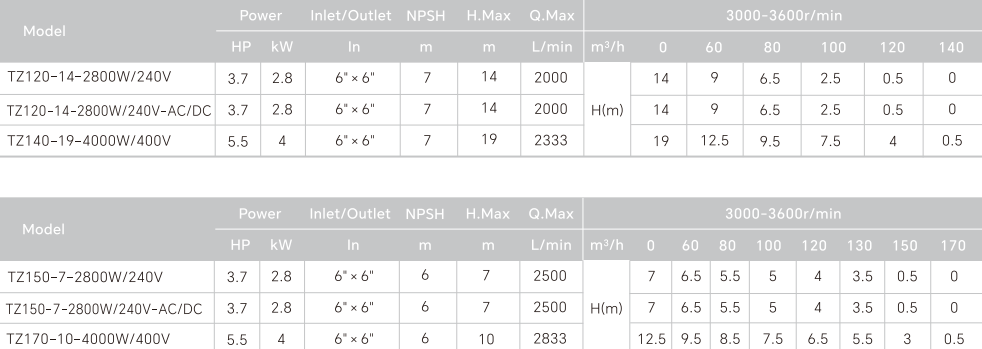

Technical Data
